Features
Unique distribution fast charging system and easy to group.

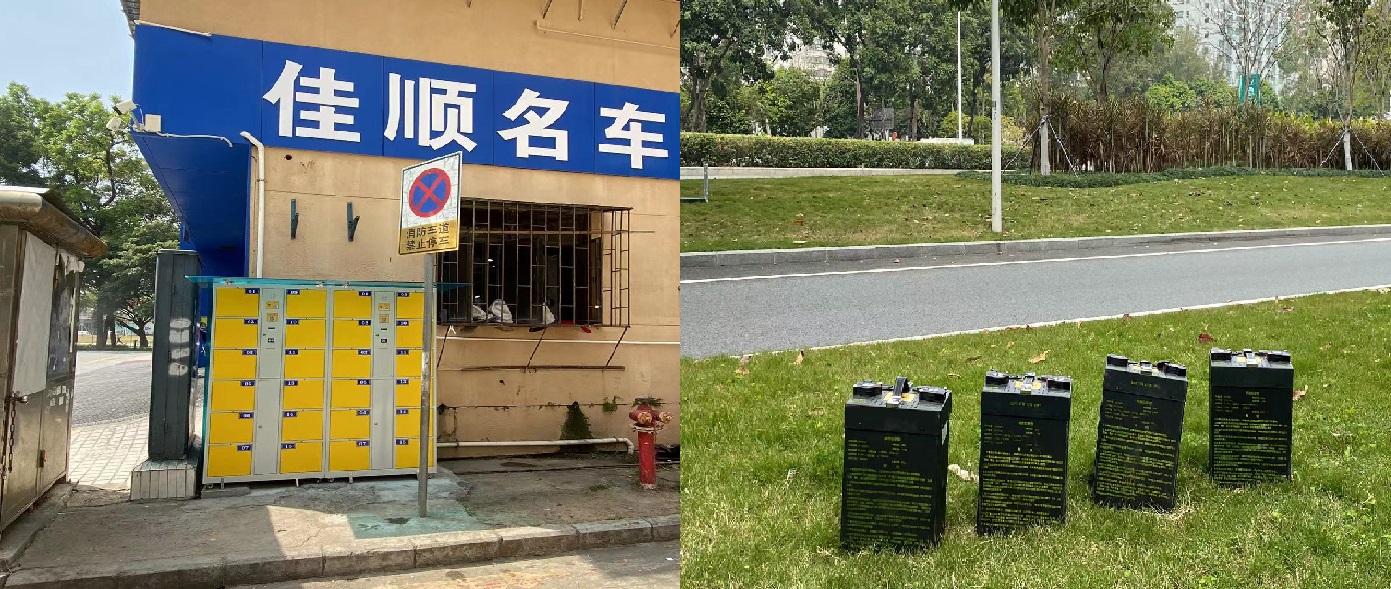

Every charging cabinet is a dependent charging station, customers scan QR code of cabinet and require service, charging station follows the order to work and provides service of returnning or getting battery pack.
Hardware handshake identifies the electrical coupling between battery pack and charging interface.
System works according to charging strategy and monitors charging status real-time during charging to ensure safety.
Charging station automatically indicates status of full of energy and recharges battery pack when energy of pack is lower than 90%.
Specifications
One cabinet with 12 standard cells consists of dependent charging station system.
Built_in radio communication module and electric energy measurement module, internal cycling ventilation system, backup power.
Data of real-time electrical parameters, status of charging cabinets and temperature collection are uploaded to cloud server at the same time.
One station deploys 4 high power chargers (500W) and total power is 2KW(full load).
Every cell deploys charging interface with hardware handshake identification. After electric coupling is done, chargers start to work. Chargers stop charging process when battery pack is full or temperature inside battery pack is over high.
Size:1800*860*45 centimeters
